    13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification

    Ask Lasest Price
    Supply Ability : 50000pecises/Year
    Certification : ISO9001
    Price : 10-1000
    Delivery Time : 15 days
    Payment Terms : TT,western
    • Product Details
    • Company Profile

    13700KG Capacity H16V190 Jinan Jichai Jgas Generator Parts with CE Certification

    H16V190 Jinan Jichai Jgas Generator PartsCNPCJPEC 1000GF-T NATURAL GAS
    GEN-S ET 1000kW

    ENGINE SPECIFICATIO NS
    V-16, 4-Stroke-Cycle-Engine (190 series)
    Bore------------------------------------------- 190mm
    Stroke----------------------------------------- 215mm
    Displacement-------------------------------- 97.53L
    Aspiration Turbocharged-After cooled
    Speed Control Electronic Speed governing
    Rated Speed 1200rpm
    Rated power--------------------------------- 1150kW


    H16V190Z LT-2 outer mixing gas engine is developed by our company to meet the requirement of market. The whole engine is optimized by amending the shortages of the first gas engine generation. The power performance, fuel economy and reliability of this gas engine are improved a lot by adopting outer mixing mode, increasing compression ratio and boost ratio, enhancing swirl rat io, realizing lean -burnt by controlling air fuel ratio, using high-energy ignition, and etc.
    This engine series is mainly used in generating by single en gine or several engines forming a power station. It also can be used as power of comp ressor, oil t ransfer pump, water in jection pump, and etc.
    MAIN FEATURES

    Engine Design Testing

    • Designed by AVL, Austria - Strict Inspection and Factory Test for Each Gen -set
    • Intellectual Property belong to JCPC - Start Performance Test
    • Triaxiality Finite Element Analysis - Load Test
    • Longer Stro ke, More d isplacement - Synchronization Test
    • Low Speed (1200RPM), More Reliab le - Safety System Test
    • Advanced World Standard Performance The Whole Equipment Supply Generator - Standard Scope of Supply
    - Brushless Excitation - Repairing Tools

    -AVR Easy Installation and Remove

    • Better Insulation and Protection - A ll Equip ment on Co mmon Skid Three -Point
    Safety Support
    • Low Oil Pressure Auto Stop Protection -Simple Installation Work
    • Over Speed Auto Stop Protection - High Strength Skid, for Hoisting and Removing.
    • Exp losion Proof Technical Support & Services
    • High Coolant Temperature Alarm - Technical Support and Training Service
    • Low Coo lant Level Alarm - 24/7 Technical Serv ice Tel Nu mber
    • High Oil Temperature Alarm - Rapid Spare Parts Supply
    • Co mplete Electrical Protection - After Sales Service for Generator Set Lifetime
    • Emergency Stop Device
    Property Parameter Table
    Model1000GF-T
    Engine typeH16V190ZLT-2
    Alternator type1FC series (siemens technology)
    Rated Power * kW1000
    Rated Speed rp m1200
    Rated Frequency Hz60
    Rated PF0.8
    Vo ltage Regulat ion AVR
    Weight kg19500
    Dimension mm6500×2312×2777


    *Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, At mospheric pressure at 100kPa and Relative hu mid ity at 30%). Site rat ing and fuel consumption should amend according to relative standard (The table at right side for reference )
    Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
    Main business scope:
    Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
    H16V190 Jinan Jichai Jgas Generator Parts
    Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
    H16V190 Jinan Jichai Jgas Generator Parts

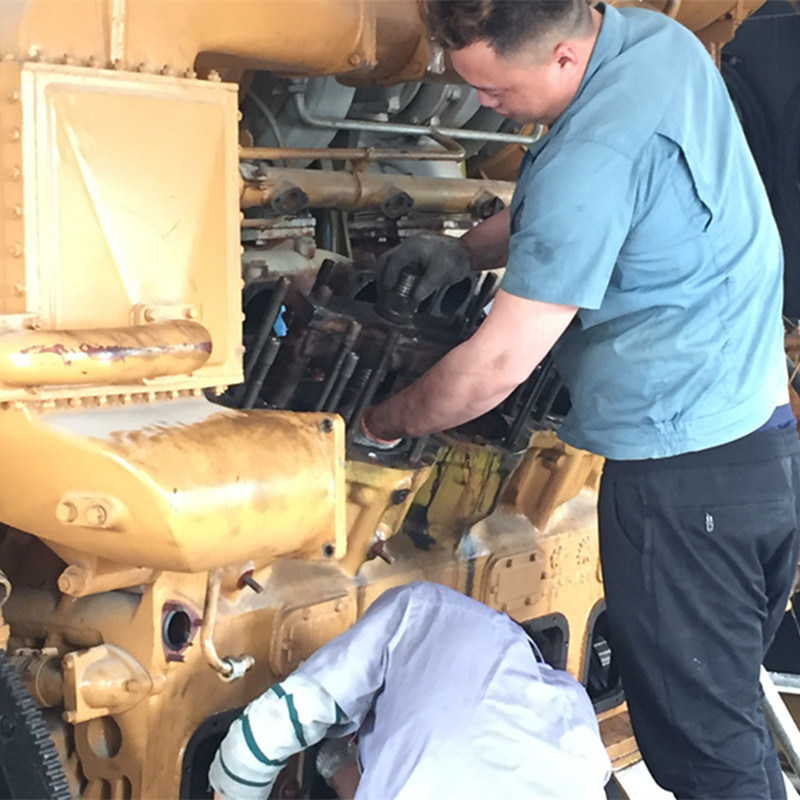

    Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
    H16V190 Jinan Jichai Jgas Generator Parts
